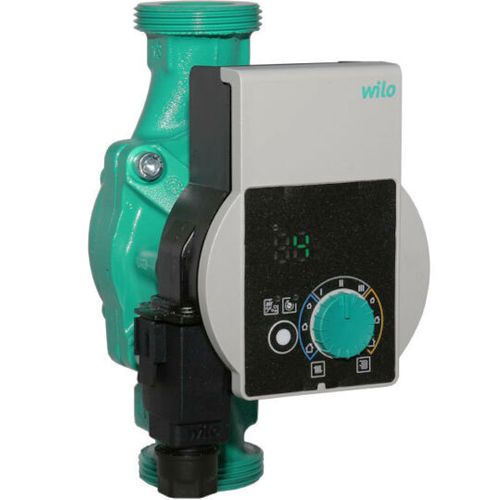

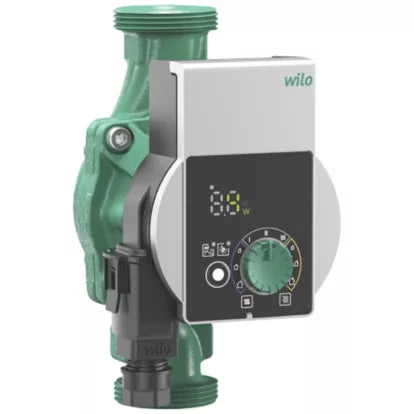

Wilo Yonos Pico 15/1-6 Circulating Pump

The Wilo Yonos Pico are a range of highly efficient, electronically controlled circulating pumps that are maintenance free and glandless. The Pico features a blocking-current proof synchronous motor and built-in electronic power control for variable differential pressure control. The suitable control mode can be selected to suit the radiator or underfloor application, making the Yonos Pico compatible for all heating and air conditioning systems.

Features & Benefits

  • Preselectable control modes for optimum load adjustment: Differential pressure constant, differential pressure variable, constant speed (3 pump curves)
  • Integrated motor protection
  • LED for setting the setpoint and displaying the current consumption in watts
  • Automatic deblocking function
  • Manual pump venting function for venting the rotor chamber
  • Manual restart
Manufacturer Wilo
Weight 1.8 Kg
Dimensions 127.4mm (H) x 130mm (L) x 93.5mm (D)
Connection Type 1 Inch BSP
Motor Size (kW/W) 3 - 40 watts
Voltage 240V 1Ph 50Hz
Max Flow 3.6m3/hr
Max Head 6mtr
Max Temperature 95oC
Material Cast Iron
Impeller Material PP-GF40
