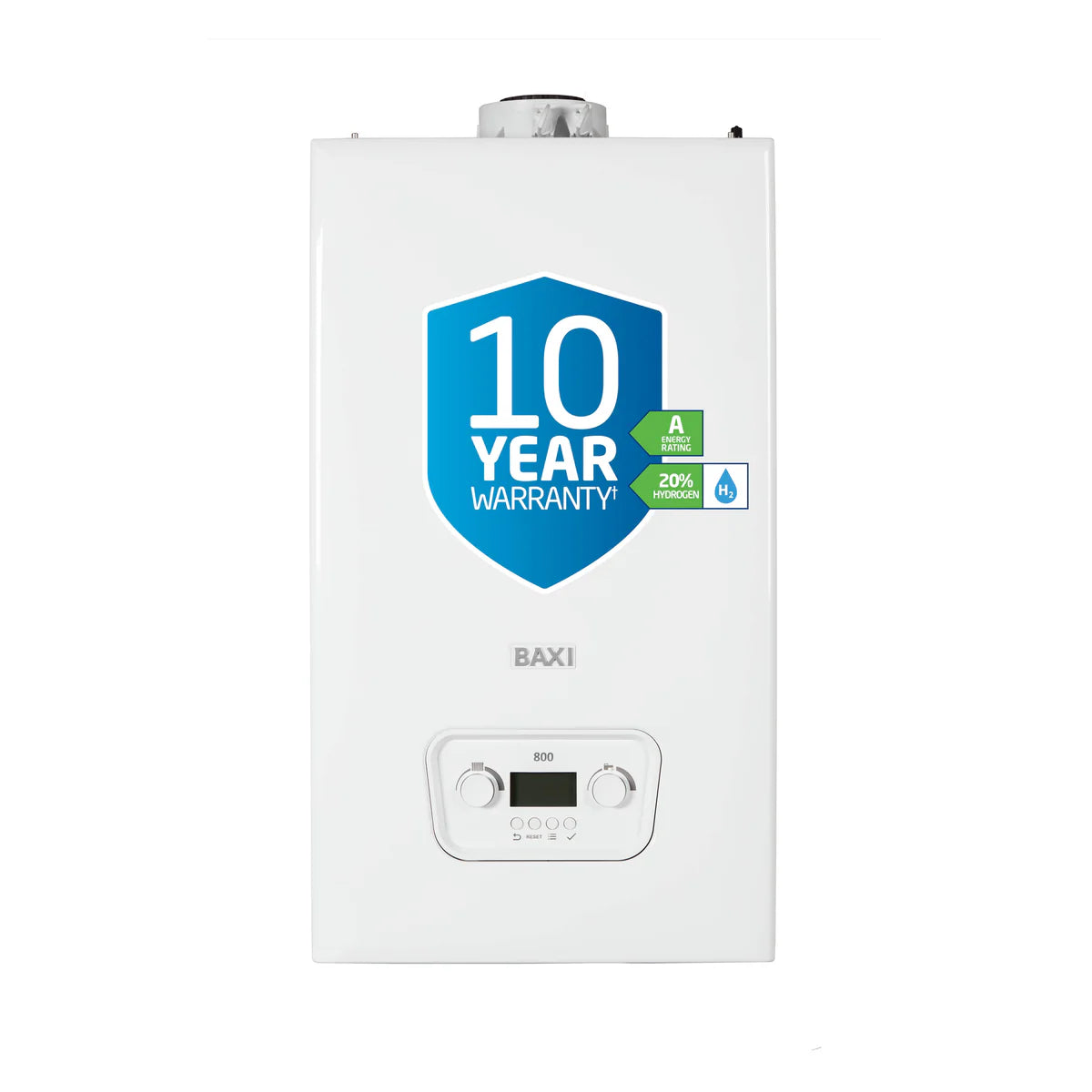

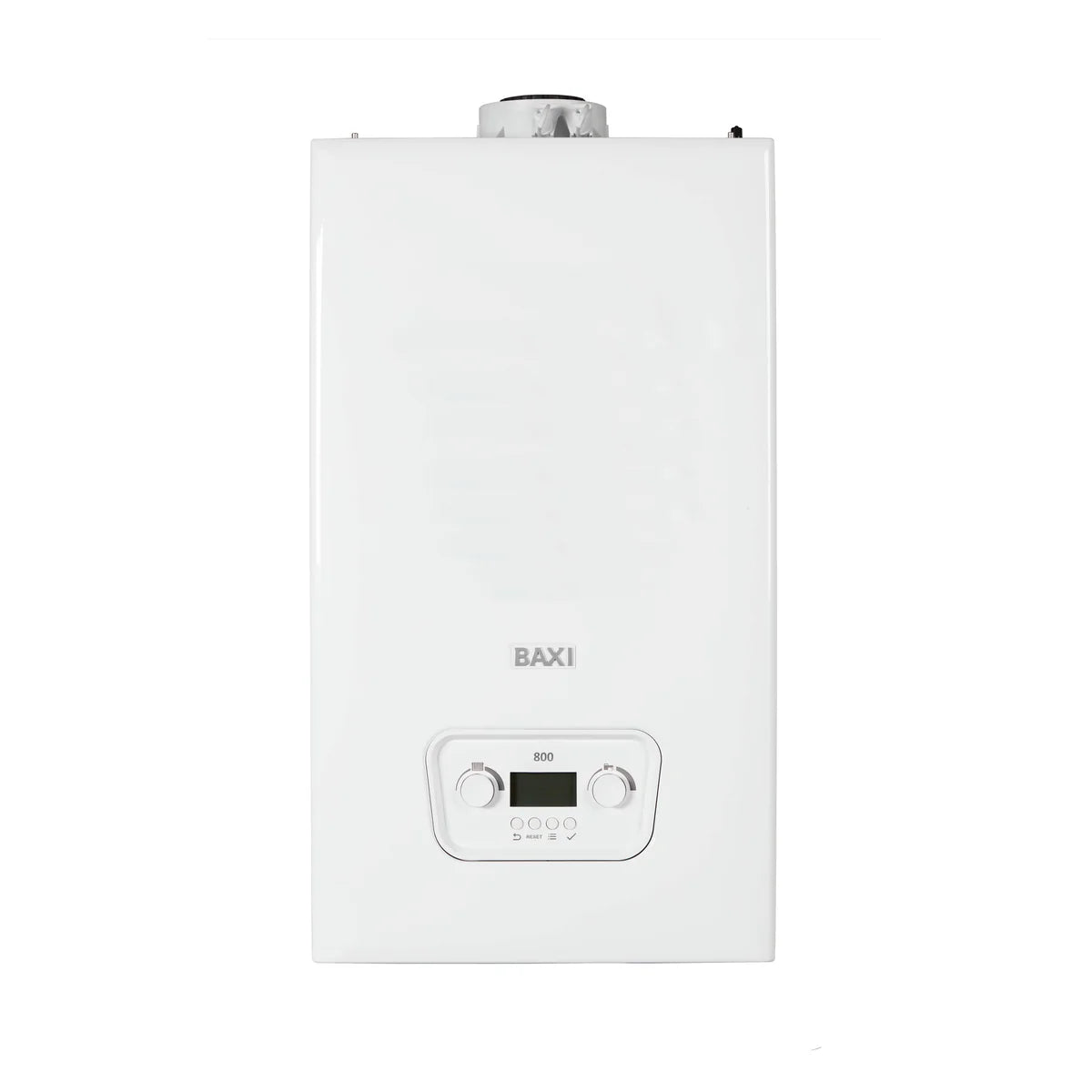

 Baxi 824 24kw 800 Combi 2 Boiler Only 7814304

Lead time is 2-5 Working Days!

Compact and easy to use, the Baxi 800 Combi 2 has a Ten-year parts and labour warranty. When you need to top off the pressure, the Easy-Fill permanent filling link makes it simple to do so without involving an engineer. As well as this, Baxi uSense smart controls can also be used with this boiler, which would be operated by a smartphone or tablet.

The boiler also features a preheated condensate trap, which will prevent freezing in winter, meaning no more frozen pipes during the winter months. It is also compatible with natural gas or LPG without the need for a conversion kit. As well as this, the Baxi 800 combi 2 is also very reliable and energy efficient, featuring an impressive "A" energy rating.

Known for its practicality, the compact boiler will fit into most cupboards with ease and is incredibly easy to install thanks to the simple hanging bracket. The boiler also features a brass hydraulic block and a built in stand off frame.

Features & Benefits

  • 10-year parts and labour warranty* for complete peace of mind
  • Includes an Adey Micro 2 Filter** to protect your heating system and boiler
  • EasyFill makes it easy to top up the central heating system pressure without having to call an engineer
  • Pre-heated condensate trap to prevent freezing in winter – no more frozen condensate pipes!
  • Works with natural gas or LPG, without a conversion kit
  • It’s compatible with the Baxi uSense smart control

Dimensions

  • Boiler Width = 395mm
  • Boiler Height = 700mm
  • Boiler Depth = 285mm
  • Side Clearance = 2.5mm
  • Upper Clearance = 178mm
  • Lower Clearance = 150mm
  • Front Clearance = 5mm in operation (450mm for servicing)

Technical Specs

  • 24kW, 30kW and 36kW Combi (Natural gas and LPG)
  • Compact cupboard fit
  • Brass hydraulics block
  • Built in stand off frame
  • Certified OpenTherm
  • Simple hanging bracket
  • Certified to work with 20% hydrogen
  • Vertical sleeve recyclable packaging
  • Combined PrV with separate drain
  • Colour coded and removable wiring blocks
  • Pre heated siphonic condensate trap
  • Easy-fill 2 permanent filling Link
  • Includes Adey Micro2 Magnetic System filter

User Guide - Downloadable File


 Baxi 824 Combi 2
Sales Code Boiler Only 7814304
Gas
Natural gas or LPG Yes
Inlet supply pressure (natural gas) mbar (nominal) 20
Maximum Gas Rate (G20) Qmax m3/hr 2.61
Heat input CH kW (max) Gross (QnHs) 20.6
kW (min) Gross (QnHs) 4.9
Heat Output CH (non-condensing) kW (Max) (Pn) 20
kW (Min) (Pn) 4.8
Heat Output CH (condensing) kW (Max) (Pnc) 21.8
kW (Min) (Pnc) 5.2
Heat Input Domestic Hot Water (DHW) kW max gross (QnwHs) 27.4
Heat Output Domestic Hot Water (DHW) kW max 24
Water Heating Efficiency class A
Electrical
Permanent Live Required Yes
External fuse rating Amps 3
Pump Overrun Yes
Integral 'boiler only' Frost Thermostat Yes
Hydraulic
Maximum DHW flow rate (Delta T @ 35'C rise) l/min 10.2
Minimum DHW flow rate required l/min 2
Minimum Operating DHW pressure required bar 0.5
Integral Expansion Vessel Size (litres) 7
Maximum Capacity of CH System Litres 100
Integral Automatic Bypass Yes
Weights
Installer Lift Weight (boiler) (kg) 29.2
